零件 大燈 for BMW 3 Series E36 328i (1995)

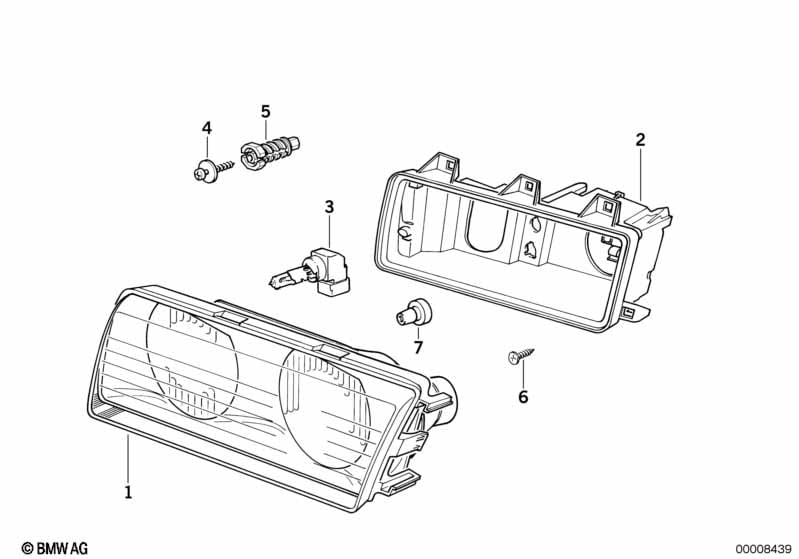

This 零件 大燈 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 反光鏡 左 | 1 | 63121387863 | $253.67 | Shop at ECS Tuning | |||||
| 01 | 反光鏡 右 | 1 | 63121387864 | $253.67 | Shop at ECS Tuning | |||||
| 02 | 支承底座 左 | 1 | 63121387865 | $80.83 | Shop at ECS Tuning | |||||
| 02 | 支承底座 右 | 1 | 63121387866 | $80.83 | Shop at ECS Tuning | |||||
| 03 | 白熾燈 | HB3 12V 60W | 2 | 63217160785 | $18.86 | Shop at ECS Tuning | ||||
| 03 | 白熾燈 近光/前霧燈 | HB4 12V 55W | 2 | 63217160786 | $18.86 | Shop at ECS Tuning | ||||
| 04 | 用於塑膠的六角螺栓 | X | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 05 | 調整螺釘 大燈 | X | 63121387026 | $0.52 | Shop at ECS Tuning | |||||
| 06 | 螺釘 | 4X20 | X | 63128357513 | $1.95 | Shop at ECS Tuning | ||||
| 07 | 中間件 | 6 | 63128353588 | $7.05 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i 零件 大燈?
- This technical diagram illustrates the 零件 大燈 within the 車燈 group for the 3 Series E36 328i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the 反光鏡 左 (Part #63121387863).
- Which models use the hardware listed in this 零件 大燈?
- The hardware and components featured in the 零件 大燈 are specific to the 3 Series E36 328i produced during 1995. These technical specifications ensure that parts like the 反光鏡 左 (63121387863) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 零件 大燈 assembly?
- Each item in the 零件 大燈 corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the 反光鏡 左 by locating its position on the schematic, which then links to the official BMW part number 63121387863 for the 車燈 section.
