零件 汽車電話天線 for BMW 3 Series E36 323i (1996)

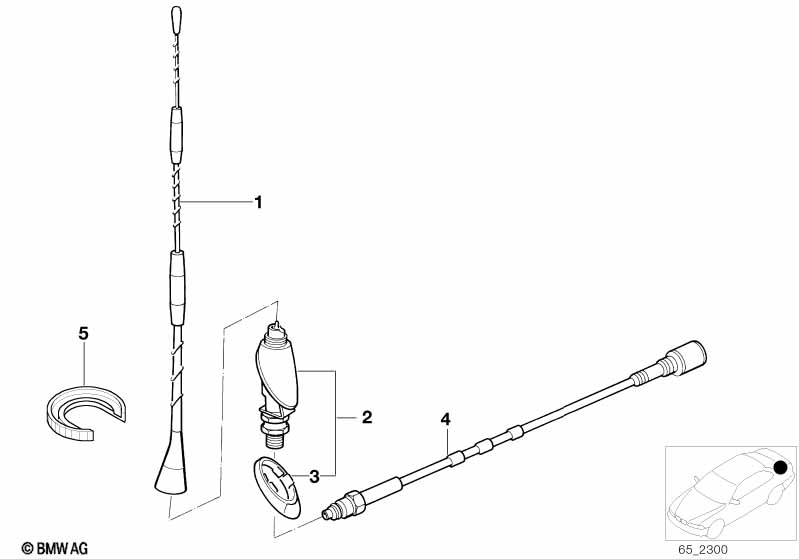

This 零件 汽車電話天線 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 天線輻射體 | D-NETZ 837MM | 1 | 84518360970 | $145.63 | 已不供應, +料件本體費. | Shop at ECS Tuning | |||
| 02 | 天線座 | D-NETZ | 1 | 84518361244 | $80.07 | 已不供應, +料件本體費. | Shop at ECS Tuning | |||
| 03 | 密封環 | 1 | 84518361246 | $3.91 | Shop at ECS Tuning | |||||
| 04 | 天線導線 | D-NETZ 1000MM | 1 | 84548362165 | 已不供應 | Shop at ECS Tuning | ||||
| 05 | 天線扳手 | 1 | 84549404727 | $1.34 | 已不供應 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
- +core = 加上料件本體費費用 (舊零件有可能回收)
