功放器/ 支架高保真 Professional DSP for BMW 5 Series E60 530i (2004)

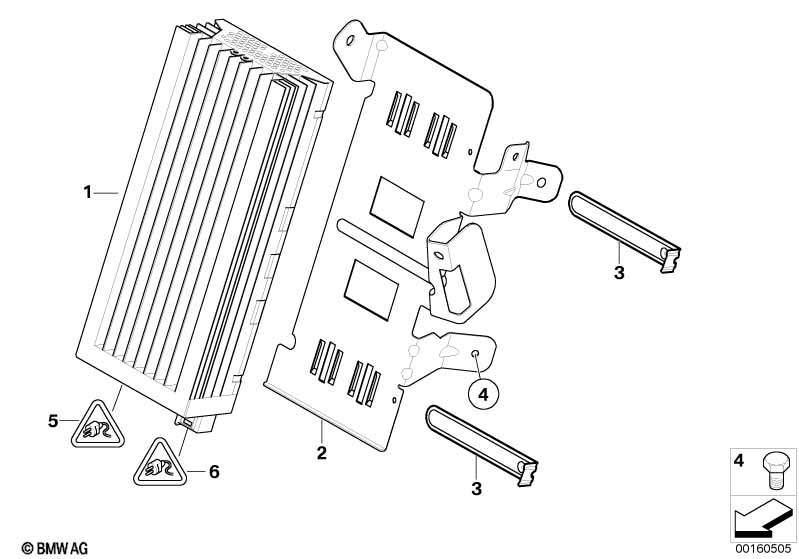

This 功放器/ 支架高保真 Professional DSP technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用於車輛及 高保真系統 專業數碼音響處理器 |
S677A=岆 |
|||||||||
| 01 | 功率放大器 頂級高保真系統 | 1 | 65129181743 | $1232.18 | Shop at ECS Tuning | |||||
| 02 | 頂級高保真系統功率放大器支架 | 1 | 65159135720 | $15.32 | Shop at ECS Tuning | |||||
| 03 | 鎖止圈 | 2 | 65126908277 | $1.92 | Shop at ECS Tuning | |||||
| 04 | 六角螺栓 | M5X14 | 3 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | 套筒殼體 | 20 POLIG | 1 | 61131383502 | $7.28 | Shop at ECS Tuning | ||||
| 僅連接 | ||||||||||
| -- | 圓形插套 2.5 ELA 帶電纜 | 1,0-2,5 MM² | 4 | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| -- | 插頭觸頭 2.5 | 0.5-1.0 MM² | 4 | 61131392302 | $0.42 | Shop at ECS Tuning | ||||
| 06 | 套筒殼體 | 1 | 61136901844 | $3.42 | Shop at ECS Tuning | |||||
| 僅連接 | ||||||||||
| -- | 插座連接器 MQS 帶電纜 | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | 飾蓋 | 1 | 61136905200 | $3.68 | Shop at ECS Tuning | |||||
| -- | 光纜 封裝殼體 | 2POL. /SCHWARZ | 1 | 61138387214 | $1.83 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530i 功放器/ 支架高保真 Professional DSP?
- This technical diagram illustrates the 功放器/ 支架高保真 Professional DSP within the 音頻﹑導航﹑信息系統 group for the 5 Series E60 530i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the 功率放大器 頂級高保真系統 (Part #65129181743).
- Which models use the hardware listed in this 功放器/ 支架高保真 Professional DSP?
- The hardware and components featured in the 功放器/ 支架高保真 Professional DSP are specific to the 5 Series E60 530i produced during 2004. These technical specifications ensure that parts like the 功率放大器 頂級高保真系統 (65129181743) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 功放器/ 支架高保真 Professional DSP assembly?
- Each item in the 功放器/ 支架高保真 Professional DSP corresponds to the numbered list below the illustration. For the 5 Series E60 530i, you can identify the 功率放大器 頂級高保真系統 by locating its position on the schematic, which then links to the official BMW part number 65129181743 for the 音頻﹑導航﹑信息系統 section.
