天線導線 通用 for BMW 5 Series E60 530i (2005)

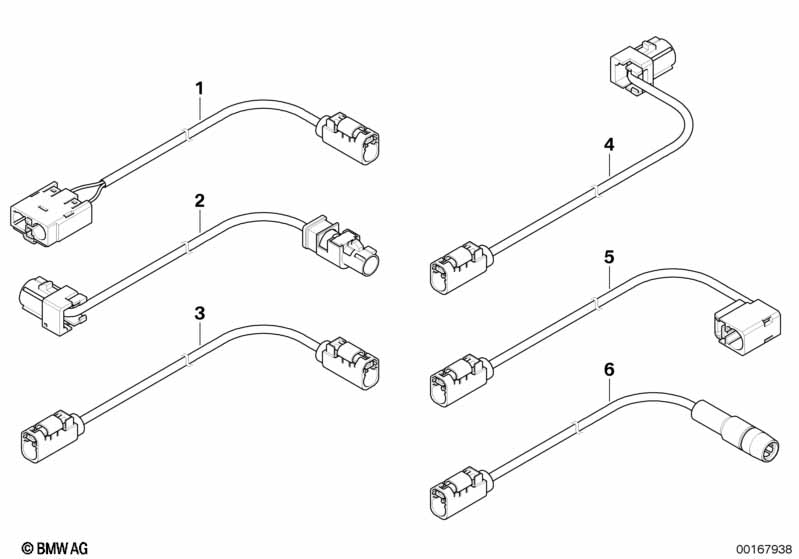

This 天線導線 通用 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 取消的天線導線利用 同軸電纜修理分類來製作 (參見 BTE 參考註釋) |
|||||||||
| 01 | 天線導線 | L= 4300MM | 1 | 61126962797 | $35.20 | 已不供應 | Shop at ECS Tuning | |||
| 02 | 天線導線 | L= 6560MM | 1 | 61126962799 | $35.20 | 已不供應 | Shop at ECS Tuning | |||
| 03 | 天線導線 | 3055MM | 1 | 61126960966 | $35.20 | 已不供應 | Shop at ECS Tuning | |||
| 03 | 天線導線 | L= 1780MM | 1 | 61126962802 | $35.20 | 已不供應 | Shop at ECS Tuning | |||
| 03 | 天線導線 | L= 4380MM | 1 | 61126962804 | $35.20 | 已不供應 | Shop at ECS Tuning | |||
| 04 | 天線導線 | L= 1300MM | 1 | 61126962807 | $35.20 | 已不供應 | Shop at ECS Tuning | |||
| 05 | 天線導線 | L= 3150MM | 1 | 61126960968 | $35.20 | 已不供應 | Shop at ECS Tuning | |||
| 05 | 天線導線 | L= 7670MM | 1 | 61126962811 | $26.70 | 已不供應 | Shop at ECS Tuning | |||
| 05 | 天線導線 | L= 4380MM | 1 | 61126962813 | $35.20 | 已不供應 | Shop at ECS Tuning | |||
| 06 | 天線導線 | L= 3780MM | 1 | 61126962817 | $35.20 | 已不供應 | Shop at ECS Tuning | |||
備註
- 已不供應 = 此零件已停產
