車輛聲音發生器 for BMW 5 Series G30 530e (2020)

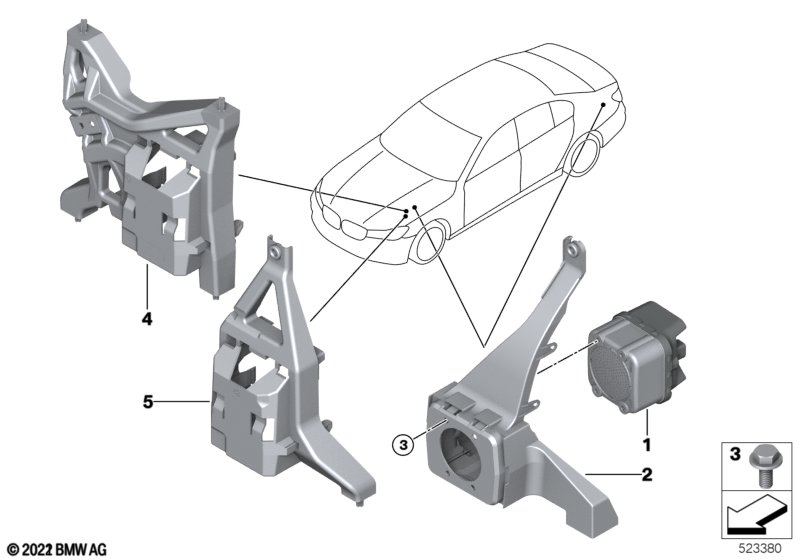

This 車輛聲音發生器 technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用於車輛及 聽覺行人保護 和 BMW Live 前排座艙 Professional |
S4U9A=岆 S6U3A=岆 |
|||||||||
| 01 | 車輛聲音發生器 | VSG 2 | 1 | 07/2019 | 65122622659 | Shop at ECS Tuning | ||||
| 用於車輛及 聽覺行人保護 和 BMW Live 前排座艙 Professional |
S4U9A=岆 S6U3A=瘁 |
|||||||||
| 01 | 車輛聲音發生器 | VSG | 1 | 07/2019 | 65125A355B1 | Shop at ECS Tuning | ||||
| 用於車輛及 聽覺行人保護 和 BMW Live 前排座艙 Professional |
S4U9A=岆 S6U3A=岆 |
|||||||||
| 02 | 支架 虛擬發聲器 | 1 | 07/2019 | 65152622687 | Shop at ECS Tuning | |||||
| 用於車輛及 聽覺行人保護 和 導航系統 Business 和 導航系統 Professional |
S4U9A=岆 S606A=岆 S609A=岆 |
|||||||||
| 02 | 支架 虛擬發聲器 | 1 | 65159360548 | Shop at ECS Tuning | ||||||
| 用於車輛及 聽覺行人保護 和 導航系統 Business 和 導航系統 Professional |
S4U9A=岆 S606A=岆 S609A=瘁 |
|||||||||
| 02 | 支架 虛擬發聲器 | 1 | 65159360548 | Shop at ECS Tuning | ||||||
| 用於車輛及 聽覺行人保護 和 導航系統 Business 和 導航系統 Professional |
S4U9A=岆 S606A=瘁 S609A=岆 |
|||||||||
| 02 | 支架 虛擬發聲器 | 1 | 65159360548 | Shop at ECS Tuning | ||||||
| 用於車輛及 聽覺行人保護 和 導航系統 Business 和 導航系統 Professional |
S4U9A=瘁 S606A=岆 S609A=岆 |
|||||||||
| 02 | 支架 虛擬發聲器 | 1 | 65159360548 | Shop at ECS Tuning | ||||||
| 用於車輛及 聽覺行人保護 和 導航系統 Business 和 導航系統 Professional |
S4U9A=瘁 S606A=岆 S609A=瘁 |
|||||||||
| 02 | 支架 虛擬發聲器 | 1 | 65159360548 | Shop at ECS Tuning | ||||||
| 03 | 六角螺栓及平墊圈 | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 530e 車輛聲音發生器?
- This technical diagram illustrates the 車輛聲音發生器 within the 音頻﹑導航﹑信息系統 group for the 5 Series G30 530e produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the 車輛聲音發生器 (Part #65122622659).
- Which models use the hardware listed in this 車輛聲音發生器?
- The hardware and components featured in the 車輛聲音發生器 are specific to the 5 Series G30 530e produced during 2020. These technical specifications ensure that parts like the 車輛聲音發生器 (65122622659) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 車輛聲音發生器 assembly?
- Each item in the 車輛聲音發生器 corresponds to the numbered list below the illustration. For the 5 Series G30 530e, you can identify the 車輛聲音發生器 by locating its position on the schematic, which then links to the official BMW part number 65122622659 for the 音頻﹑導航﹑信息系統 section.
