環景顯示 for BMW 5 Series G30 520dX (2017)

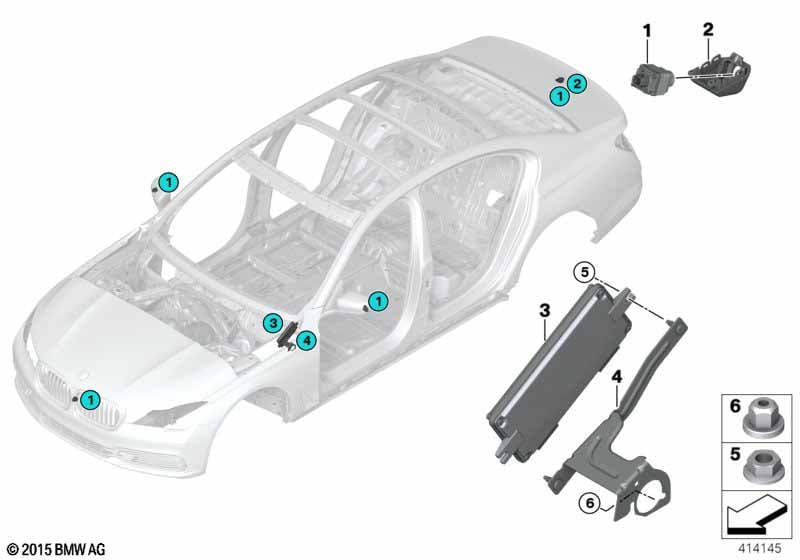

This 環景顯示 technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用於車輛及 環景顯示 或者 增強版泊車輔助系統 |
S5DLA=岆 S5DNA=岆 |
||||||||
| 01 | 環景顯示攝像機 | 4 | 07/2021 | 66537944131 | 已不供應 | Shop at ECS Tuning | ||||
| 01 | 環景顯示攝像機 | 4 | 66535A0F6D7 | Shop at ECS Tuning | ||||||
| 02 | 支架 攝像頭 | 1 | 51137357106 | Shop at ECS Tuning | ||||||
| 03 | 控制單元 環視攝像機 | 1 | 07/2018 | 66516997701 | 已不供應 | Shop at ECS Tuning | ||||
| 03 | 控制單元 環景攝影機 | ICAM2 ECU V1 | 1 | 03/2023 | 66515A4F523 | 已不供應 | Shop at ECS Tuning | |||
| 03 | 控制單元 環景攝影機 | ICAM2 ECU V1 | 1 | 11/2023 | 66515A7C9A9 | Shop at ECS Tuning | ||||
| 03 | 控制單元 環景攝影機 | ICAM2 ECU V1 | 1 | 66515B39F24 | Shop at ECS Tuning | |||||
| 04 | 支架 控制單元 | LHD | 1 | 66539352754 | Shop at ECS Tuning | |||||
| 05 | 六角螺母及平墊圈 | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 06 | 粗螺紋螺栓塑料螺母 | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
備註
- 已不供應 = 此零件已停產
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 520dX 環景顯示?
- This technical diagram illustrates the 環景顯示 within the 車距控制系統﹐定速控制系統 group for the 5 Series G30 520dX produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the 環景顯示攝像機 (Part #66537944131).
- Which models use the hardware listed in this 環景顯示?
- The hardware and components featured in the 環景顯示 are specific to the 5 Series G30 520dX produced during 2017. These technical specifications ensure that parts like the 環景顯示攝像機 (66537944131) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 環景顯示 assembly?
- Each item in the 環景顯示 corresponds to the numbered list below the illustration. For the 5 Series G30 520dX, you can identify the 環景顯示攝像機 by locating its position on the schematic, which then links to the official BMW part number 66537944131 for the 車距控制系統﹐定速控制系統 section.
