安全帶後部部件 for BMW 5 Series E34 525tds (1993)

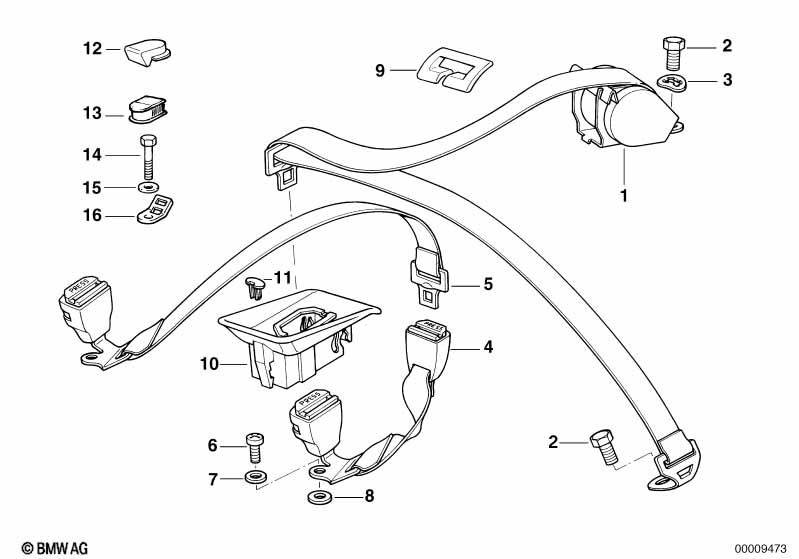

This 安全帶後部部件 technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 胸部安全帶 後部 帶兒童保護裝置 | SCHWARZ | 2 | 72118200782 | $144.06 | Shop at ECS Tuning | ||||
| 01 | 胸部安全帶 後部 | ULTRAMARIN | 2 | 09/1992 | 09/1995 | 72118167953 | $108.25 | 已不供應 | Shop at ECS Tuning | |
| 01 | 胸部安全帶 後部 帶兒童保護裝置 | PERGAMENT | 2 | 09/1992 | 72118200784 | $144.06 | 已不供應, +料件本體費. | Shop at ECS Tuning | ||
| 01 | 胸部安全帶 後部 帶兒童保護裝置 | SILBERGRAU | 2 | 09/1992 | 72118200786 | $116.06 | +料件本體費. | Shop at ECS Tuning | ||
| 01 | 胸部安全帶 後部 帶兒童保護裝置 | ROT | 1 | 09/1992 | 72118200788 | 已不供應 | Shop at ECS Tuning | |||
| 02 | 六角螺栓 | 7/16X30 | 2 | 72118157617 | $0.92 | Shop at ECS Tuning | ||||
| 03 | 防鬆墊片 | 4 | 72111969175 | $0.53 | Shop at ECS Tuning | |||||
| 04 | 安全帶總成 左後 | SCHWARZ | 1 | 72118120353 | $53.56 | Shop at ECS Tuning | ||||
| 04 | 安全帶總成 左後 | ULTRAMARIN | 1 | 09/1992 | 72118167955 | $78.40 | 已不供應 | Shop at ECS Tuning | ||
| 04 | 安全帶總成 左後 | PERGAMENT | 1 | 09/1992 | 72118167957 | $53.56 | Shop at ECS Tuning | |||
| 04 | 安全帶總成 左後 | SILBERGRAU | 1 | 09/1992 | 72118167959 | $53.56 | Shop at ECS Tuning | |||
| 05 | 安全帶總成 右後 | SCHWARZ | 1 | 72118120354 | $57.13 | Shop at ECS Tuning | ||||
| 05 | 安全帶總成 右後 | ULTRAMARIN | 1 | 09/1992 | 72118167962 | $44.64 | 已不供應 | Shop at ECS Tuning | ||
| 06 | 星形螺栓 | ISA 7/16"X25 | 2 | 72118120976 | 已不供應 | Shop at ECS Tuning | ||||
| 07 | 平墊圈 | 2 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 08 | 防鬆墊片 | 2 | 72111969175 | $0.53 | Shop at ECS Tuning | |||||
| 09 | 飾板 左 | SCHWARZ | 1 | 72118149015 | $3.58 | Shop at ECS Tuning | ||||
| 09 | 飾板 右 | SCHWARZ | 1 | 72118149016 | $2.58 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 左 | SCHWARZ | 1 | 72118149185 | $12.33 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 右 | SCHWARZ | 1 | 72118149186 | $12.33 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 左 | SILBERGRAU | 1 | 72118149187 | $12.33 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 右 | SILBERGRAU | 1 | 72118149188 | $12.73 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 左 | ULTRAMARIN | 1 | 72118149189 | $12.03 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 右 | ULTRAMARIN | 1 | 72118149190 | $12.73 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 左 | PERGAMENT | 1 | 72118149191 | $12.73 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 右 | PERGAMENT | 1 | 72118149192 | $12.95 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 左 | SILBERGRAU HELL | 1 | 72118149225 | $12.73 | 已不供應 | Shop at ECS Tuning | |||
| 10 | 飾板 右 | SILBERGRAU HELL | 1 | 72118149226 | $12.73 | 已不供應 | Shop at ECS Tuning | |||
| 11 | 塞子 | SCHWARZ | 2 | 72118149273 | $0.22 | Shop at ECS Tuning | ||||
| 11 | 塞子 | SILBERGRAU | 2 | 72118149274 | $0.47 | Shop at ECS Tuning | ||||
| 11 | 塞子 | ULTRAMARIN | 2 | 72118149275 | Shop at ECS Tuning | |||||
| 11 | 塞子 | PERGAMENT | 2 | 72118149276 | $7.90 | Shop at ECS Tuning | ||||
| 用於車輛及 兒童座椅 |
=岆 |
|||||||||
| 12 | 密封蓋 | SCHWARZ | 3 | 01/1994 | 72118149285 | $4.43 | 已不供應 | Shop at ECS Tuning | ||
| 12 | 密封蓋 | SILBERGRAU | 3 | 01/1994 | 72118149286 | 已不供應 | Shop at ECS Tuning | |||
| 12 | 密封蓋 | PERGAMENT | 3 | 01/1994 | 72118149288 | $4.33 | 已不供應 | Shop at ECS Tuning | ||
備註
- 已不供應 = 此零件已停產
- +core = 加上料件本體費費用 (舊零件有可能回收)
