零件 車頂電話天線 for BMW 3 Series E46 318i (2004)

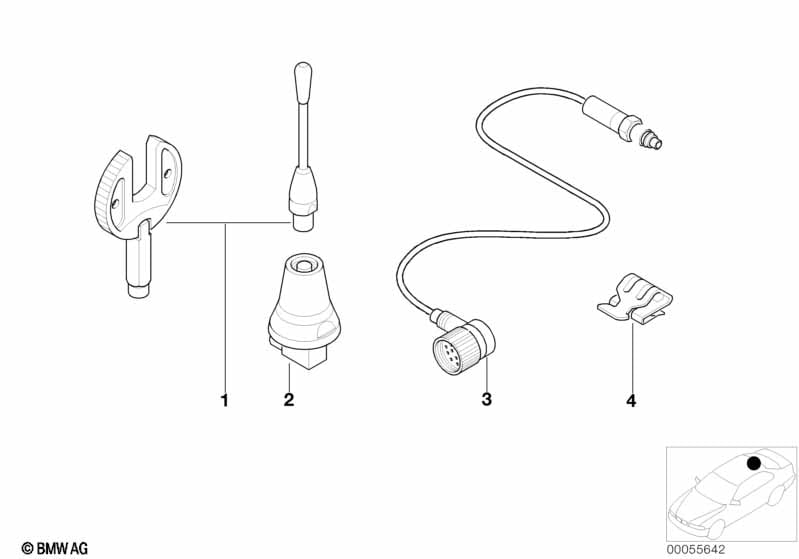

This 零件 車頂電話天線 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 天線輻射體 雙帶 | NETZ GSM / PCN | 1 | 06/2000 | 84506907083 | $22.08 | Shop at ECS Tuning | |||
| 02 | 車頂天線支腳 雙帶 | 1 | 06/2000 | 84506907085 | $75.16 | +料件本體費. | Shop at ECS Tuning | |||
| 03 | 天線導線 | 2590 MM | 1 | 61128375790 | $41.85 | 已不供應 | Shop at ECS Tuning | |||
| 04 | 導線架 2 層 | 3 | 61138380213 | $0.35 | Shop at ECS Tuning |
備註
- +core = 加上料件本體費費用 (舊零件有可能回收)
- 已不供應 = 此零件已停產
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i 零件 車頂電話天線?
- This technical diagram illustrates the 零件 車頂電話天線 within the 通信系統 group for the 3 Series E46 318i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the 天線輻射體 雙帶 (Part #84506907083).
- Which models use the hardware listed in this 零件 車頂電話天線?
- The hardware and components featured in the 零件 車頂電話天線 are specific to the 3 Series E46 318i produced during 2004. These technical specifications ensure that parts like the 天線輻射體 雙帶 (84506907083) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 零件 車頂電話天線 assembly?
- Each item in the 零件 車頂電話天線 corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the 天線輻射體 雙帶 by locating its position on the schematic, which then links to the official BMW part number 84506907083 for the 通信系統 section.
